Product Details:
|
| Private Mold: | Yes | Style: | USB Microphone, Desktop, Shock Mount, Wired Microphone, Handheld Microphone With Speaker |
|---|---|---|---|
| Communication: | Wired | Use: | COMPUTER MICROPHONE, Conference Microphone, Karaoke Microphone, Church, Stage Performance, INTERVIEW, Speech, Recording, SINGING, Teaching, Portable Audio Player, Communication, Broadcasting, Kids, Gaming |
| Material: | Metal, Plastic | Function: | Noise Cancelling, Light-weight, PORTABLE, Condenser Microphone, With Sound Card |
| Polar Pattern: | Cardioid, Cardioid,Omni,Figure-8 | Type: | Tube Condenser Microphone |
| Signal To Noise Ratio: | 79dBA | Frequency Response Rate: | 20Hz-20KHz |
| Maximum SPL: | 123db(1%T.H.D.@1kHz) | Sensitivity: | -28dB,39.8mV/Pa(0dB=1V/Pa@1kHz) |
| Product Name: | Professional Condenser Microphone | Brand: | 797Audio |
| Model No.: | ATCR01 | Sensitivity(dB)(1000Hz): | -42dB(7.9mV/Pa) |
| Recommended Input Impedance: | Less Than 1000 Ohms | Frequency Range(Hz): | 20-20,000 |
| Max.SPL(dB)(1000HzTHD<1%): | 149dB SPL | Power Requirements: | 48V DC Phantom |
| Matching Connector: | 3-pin XLR |
| Technical Data |
|
| Product | Tube Condenser Microphone |
| Model | ATCR01 |
| Brand | 797AUDIO |
| Capsule | 1.1inch Large Diaphragm Gold-plated Capsule |

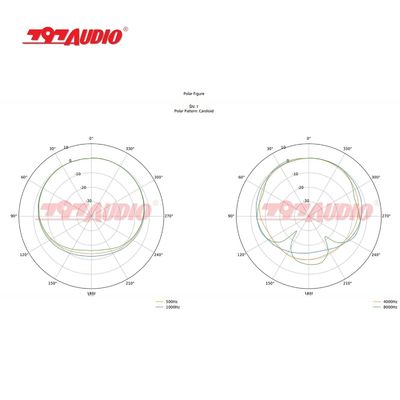

| Polar Pattern | Cardioid |
| Frequency Range(Hz) | 20-20,000Hz |
| Sensitivity(dB) | -28dB,39.8mV/Pa(0dB=1V/Pa@1kHz) |
| Output Impedance (ohm)(1000Hz) | ≤200Ω |
| Max.SPL(dB) | 123dB(1%T.H.D.@1kHz) |
| Equivalent Noise Level(dB) | 15dBA |
| S/N(dB FS) | 79dBA |
| Power | USB 5V 260mA |
| Weight | 850g |
| Length | 230mm |
| Supply Service | 797Audio Brand,OEM,ODM |
| Delivery Terms | By sea, By Express,By Air, By Train |
| Applications | Interview, Live Chat, Recording, Broadcasting, Conference, Speech, Gaming,Singing, Entertainment,Etc. |
This Tube Condenser Microphone is professional for Interview, Live Chat, Recording, Live Streaming,Broadcasting, Conference, Speech, Gaming,Singing, Entertainment,Etc.
Beijing 797 Audio Co.,Ltd. was founded in 1953 as an electric-acoustic manufacturer with long history in the field of microphone,speaker system,audio,etc.
Beijing 797 Audio Co., Ltd. has set microphone, speaker national standard, industry standard for audio, It covers audio products, public broadcasting and other fields. We already get over 70 patents on microphones and loudspeakers. We get ISO9001,ISO14001,ISO45001,and CE certificates, And our products have also been winning awards continuously.
