Product Details:
|
| Private Mold: | Yes | Style: | Handheld Microphone, Desktop, Shock Mount, Wired Microphone |
|---|---|---|---|
| Communication: | Wired | Use: | COMPUTER MICROPHONE, Conference Microphone, Karaoke Microphone, Church, Stage Performance, INTERVIEW, Speech, Recording, SINGING, Teaching, Communication, Broadcasting, Gaming |
| Material: | Metal, Plastic | Function: | Noise Cancelling, Condenser Microphone |
| Polar Pattern: | Omni-directional, Cardioid, Figure-8, Omni, Cardioid, F-8 | Type: | Condenser Microphone |
| Frequency Response Rate: | 20Hz-20KHz | Maximum SPL: | 128db |
| Sensitivity: | -34dBFS/Pa | Product Name: | MuIti-directional Patterns Vacuum Tube Condenser Microphone |
| Brand: | 797Audio | Model No.: | ATCR02 |
| Sensitivity(dB)(1000Hz): | -36 | Recommended Input Impedance: | Above 1000 Ohms |
| Frequency Range(Hz): | 20-20,000 | Max.SPL(dB)(1000HzTHD<1%): | 128 |
| Equivalent Noise Level(dB) A-Weighted: | 20 |

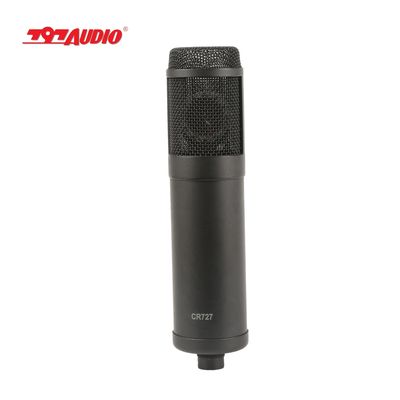

ATCR02 series microphone is large vacuum tube condenser microphone
which combined with hand selected 12AT7 tube and qulified audio transformer response,
low noise and distortion,high S/N ratio and good suppression to structure born noise.
Its full,transparent,natural sound quality and rugged zinc-alloy body structure facilitates it
to be the pearl in the eyes of recording fancies.
ATCR02 offers general cardioid pickup patter while ATCR02 provides 9 switchable pickup
patterns,cover from cardioid, omni to F-8. High qualified 6um mylar diaphragm,
1'' center-terminated capsule is adopted in the series.
With its warm tuned sound reproduction performance,ATCR02 is undoubted
to be a good choice for professional audio recordings and live stage applications.
| Product Name | Large Vacuum Tube Condenser Microphone |
| Brand | 797Audio |
| Model | ATCR02 |

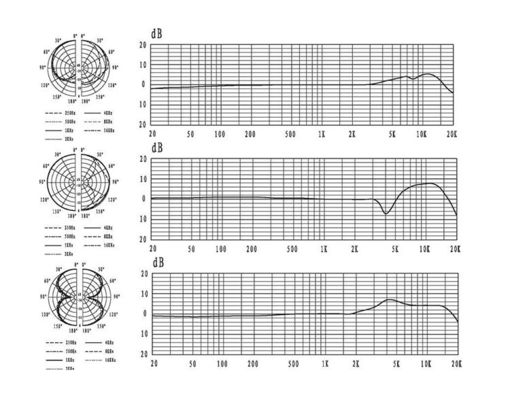

| Polar Pattern | Cardioid / Omni / Figure-8 |
| Frenquency Response | 20Hz-20kHz |
| Output Impedance | 200 ohms |
| Recommended Input Impedance | above 1000 ohms |
| Max. SPL (1 % THD @ 1000Hz) | 128dB |
| Equivalent Noise Level (A-weiqhted) | 20dB |
| Power Requirements | N95 Phantom Power |
| Charging In | USB Type-C |

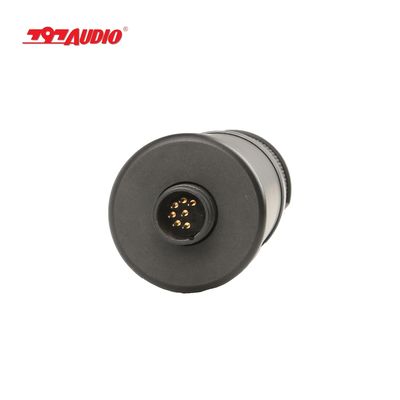

| Matching Connector | 7-pinXLR |
| Size | cp54 X224mm |
| Net Weight | 630g |
| Supply product | 797Audio brand, OEM, ODM |
| Delivery terms | By sea, By Express,By Air, By Train |
Professional Tube Condenser Microphone for Professional Level Recording, Interview, Live Chat, Stage Proformance, Broadcasting, Speech, Gaming,Singing, Entertainment,Etc.
Beijing 797 Audio Co.,Ltd. was founded in 1953 as an electric-acoustic manufacturer with long history in the field of microphone,speaker system,audio,etc.
Beijing 797 Audio Co., Ltd. has set microphone, speaker national standard, industry standard for audio, It covers audio products, public broadcasting and other fields. We already get over 70 patents on microphones and loudspeakers. We get ISO9001,ISO14001,ISO45001,and CE certificates, And our products have also been winning awards continuously.
